DESCRIPTION

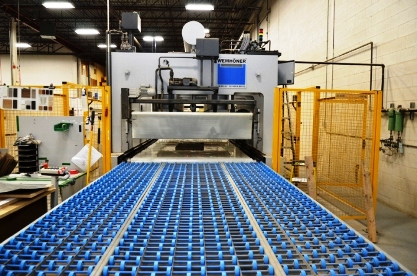

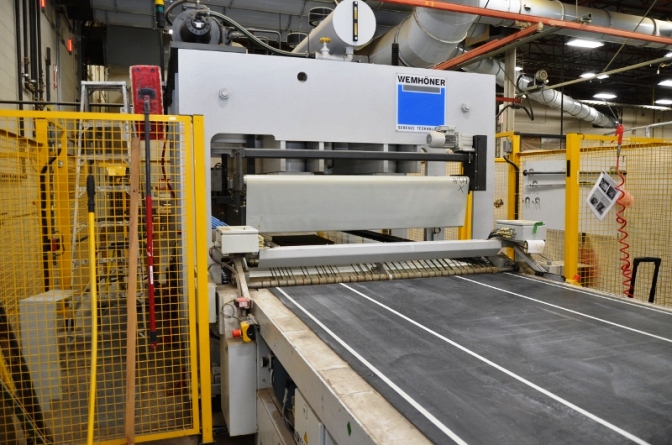

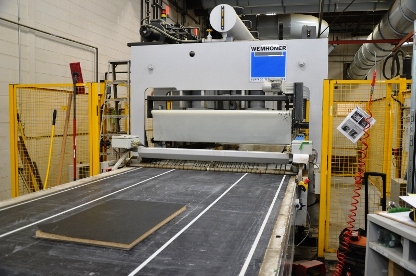

Wemhoner Single Daylight Short Cycle Throughfeed Press Line
Model: KT-V-1E
Year: 2009
Engineered for Full Size
Substrates or Cut to Size Pieces ( Particle Board, MDF Board )
With Real Wood Veneers HPL or Other Suitable Laminating Products
Platen Size: 3.400 mm X 1.700 mm
Through feed Mylar Belt System
Down Stroke 8 Pistons 155 mm Diameter
Total Press Pressure
4.800 KN
Operating Temperature Max. 170 Degrees Centigrade

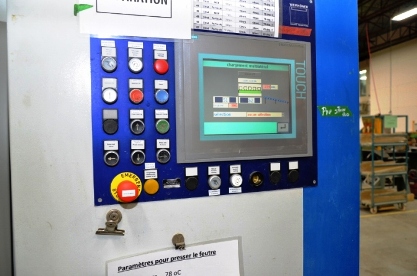

Electric Control PLC Siemens S7
Thermo Hot Oil Boiler
SUBSTRATE DIMENSIONS
Length: 300 mm Minimum
3200 mm Maximum
Widths: 300 mm Minimum
1600 mm Maximum
Thickness: 4 mm
Minimum
60 mm Maximum
Scanner and Automatic Individual
Cylinder Pressure Control System
Enable a Trouble Free
Production of Small Individual Pieces without
The Need of
Operator Intervention for Setting Pressure and Without
The Need
for Fill in Blanks and Spacers.
Black Bros Top & Bottom Glue
Spreader With Doctor Rolls 80”Capacity
Knife Roller Conveyor
layup
Power Infeed Conveyor
This machine is only
available April 1, 2022
Wemhoner Short
Cycle Throughfeed Press Line Model KT-V-1E - YouTube
|
