DESCRIPTION:

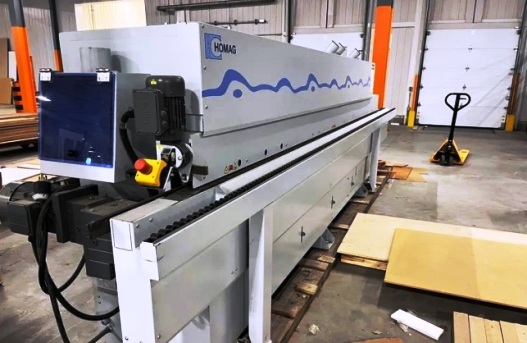

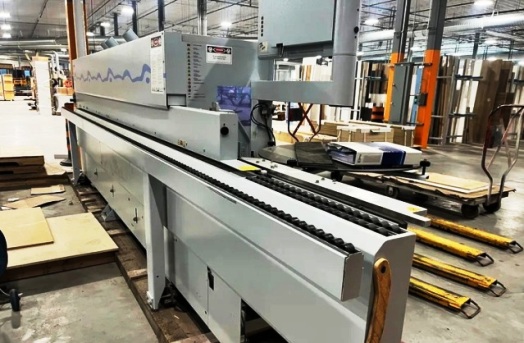

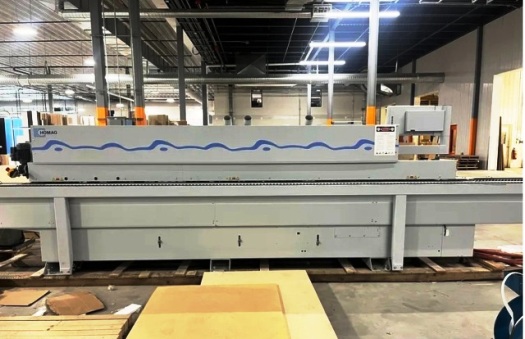

BRANDT - KDF-440C Edgebander, Year: 2017
Pre-Milling & Corner Rounding, with HIGHFLEX Automated package:
-- Edge & Workpiece Capacity: 0.4 - 8 mm (0.016 - 5/16") edge;
8 - 60 mm (5/16 - 2-3/8") panel thickness;
160 mm (6-3/8") min. panel length, 70 mm (2-3/4") min. panel width.
Equipped with: Pre-Milling Station, (2) motor,
In-feed Fence, with servo motor positioning.
Infrared Radiant Quartz Heating Unit between glue roller and pressure section.
Automatic Edge Magazine, for strip & coil stock, strips 0.4 mm - 8 mm (0.016 - 5/16"),
coils up to 3 mm PVC and "HD" guillotine.
Quick Change" Glue Tank for maintenance & glue color change.
Pressure Section, 1st. roller driven plus (3) idle rollers, timed pneumatic pressure controlled
Servo motor positioning for programmable edge thickness changeover.
Feed Speed, variable 8 - 14 MPM. (26 - 46 FPM), 11 MPM (36 FPM) when using contour trimming.
BRANDT "Power Touch Control, Memory: 256 MB Ram, 1 GB Flash Card Drive
Operator control panel w/22" color HD wide screen,
soft keypad & internal modem for remote diagnostic link.
Workstations: End Trimming: -- (2) Motor @ 0.35 kW (1/2 HP) 12,000 RPM
Flush/Bevel-Fine/Radius Trimming Unit: Top/bottom (2) motors motors
Corner Rounding Unit:(1)
Scraping, Multi-Profile (PVC):Top/bottom with (2) profiles.
Scraping Glue Unit: Flush top/bottom, Buffing Unit: Top/bottom
