EDGEBANDERS FOR SALE



IMA Single-Sided Edgebander

Ref-edgebanders-1009.html





DESCRIPTION

 “Rare-to-find” 2010 IMA Advantange Model: 500 L Edgebander I
Comes with a Doucet return conveyor
Machine model and configuration:
IMA Advantage 500 L Edgebander with 2 coil magazine, 2010 Model

- For coil edge tape (both PVC and WOOD) for up to 3mm thick with corner rounding
- Automatic change over between thin and thick tape set-ups

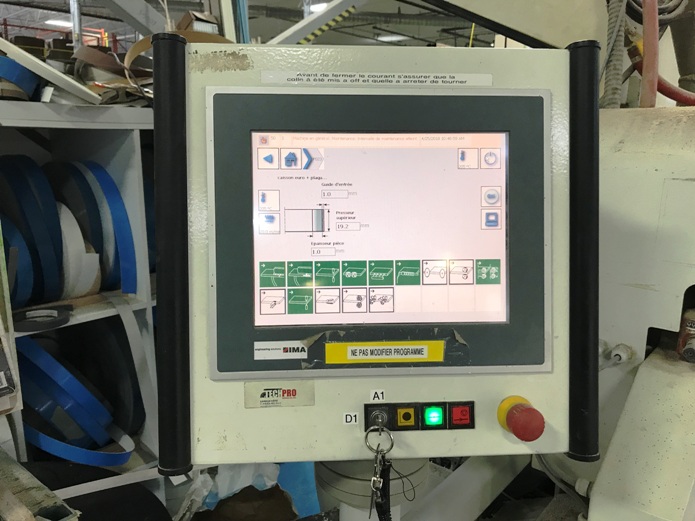

- ICOS Touch Screen Controller
- Axis controlled thickness adjustment
- Speed: max 20 m/min
- Top pressure via a double V belt drive instead of rubber wheels
- Pre-milling unit for trimming the panel edge before glueing (both motors are jump type and 4.0 kW each)
- Anti-stick solvent applicator
- Infra-red edge heater for heating the panel edge
- Glue applicator with closed gearbox drive system and pre-melter
- Automatic granule feeder
- 2 coil Edgetape magazine
- End trimming unit, with 2 x 0.66 kW motors ( pneumatically tilted), working from top
- Top and bottom milling unit - Rough ( 2 x 1.0 kW motors )
- 4-motor fine milling and corner rounding unit
- Profile Scraping unit
- Flat scraper unit - new style, with shoes
- Cleaning agent applicator
- Buffers
- Complete with tooling for thin and 3mm edge tape
- Axis control package: Axis controls for the infeed fence, pressure section, 4 motor corner rounding unit
- Open space for a smoothing unit
