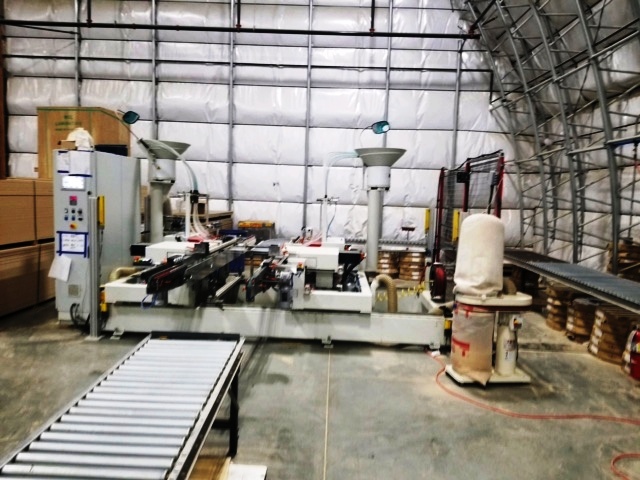

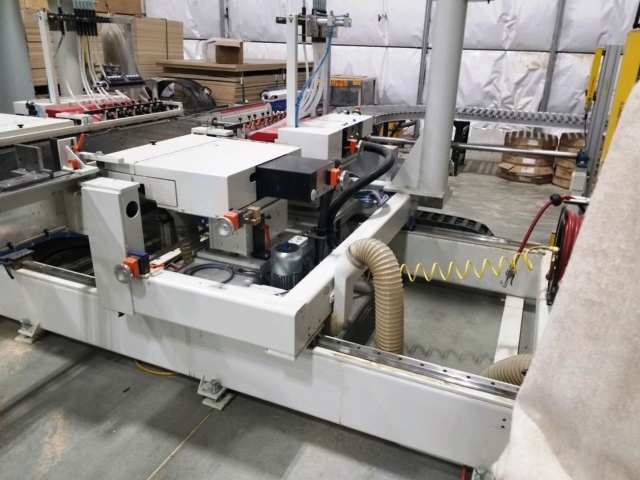

Koch Throughfeed Drilling & Dowel Insertion Machine, Model: BD-60-Base Line
Double End Automatic for Straight, Right Angles Work Pieces
Stock Dimensions
Stock Length 220-1500 mm (8.6”-59”)
Stock Width 50-600 mm (2”-23.6”)
Stock Thickness 16-30 mm (5/8”-1-1/8”)
Left Side Stationary
Infeed Height 960mm (37-3.4”)
Tilting Stock Infeed Belts
Positioning of Adjustable Machine Side X 1 NC Axis
Horizontal drilling Stations 19 Spindles on 32mm Centers
Dowels Insertion Station 7
Dowel Diameter 8 mm
Dowel Length 30-35 mm
Dowel Projection 7-14 mm
Dowel Center Distance 32mm
Horizontal Drilling Heads Max Center Distance 576 mm
Tolerances for Wood Dowels
Dowel Length +/- 1mm
Dowel Diameter +0.1/-0.2 mm
Two Vibrator Hopper Dowel Feeders
Center Stock Support
PLC Controlled
16-28 Work Pieces/Min.
Year: 2019
480 Volts, 3 Phase, 60 Cycle Operation
