Biesse Machining Centers for Sale

 5 AXIS Biesse Rover C 6.65 Pod & Rail Machining Center Conf 3 (ref-Biesse-Machining-Centers-1012.html)

DESCRIPTION

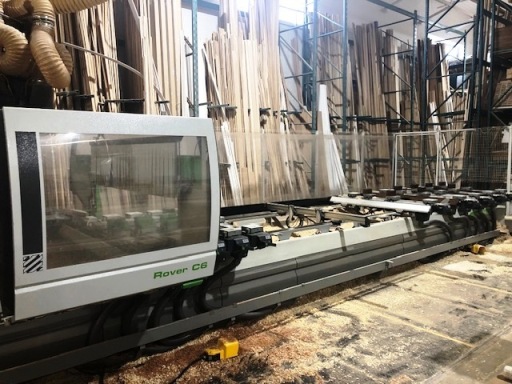

 5 AXIS Biesse Rover C 6.65 Pod & Rail Machining Center Conf 3, Year: 2010
X Axis 253” (6450mm),Y Axis 60.4” (1535mm), Z Axis 25 ½” (650mm)
Maximum Material Thickness 10.8” (275mm)

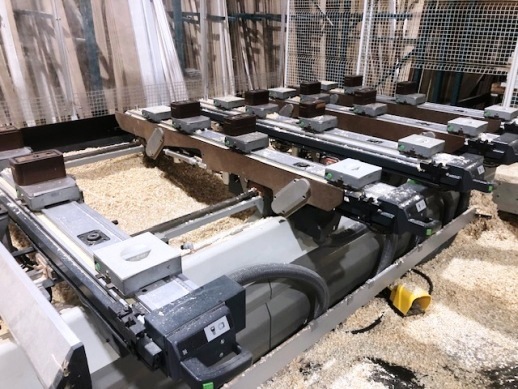

10 Electronic Positioning Panel Support (EPS), 8 Lifting Bars
4 ATS Vacuum Pods with Universal Clamping Systems Per Panel Support
2 Independent Working areas with 10 Pneumatic Back Stops
2 Pneumatic Side Stops, 2 Pneumatic Central Stops
4 H.P. Boring Unit
5 Independent Vertical Spindles in Y Axis
4 Horizontal Boring Spindles with ( 1-1 In X Axis) ( 1-1 In Y Axis)
16 H.P. Liquid Cooled 5 Axis Electro Spindle, HSK F63 Adaptors
33 Position ATC Tool Rack
Biesse NC 1000 & Biesse Works & Windows XP Operating System

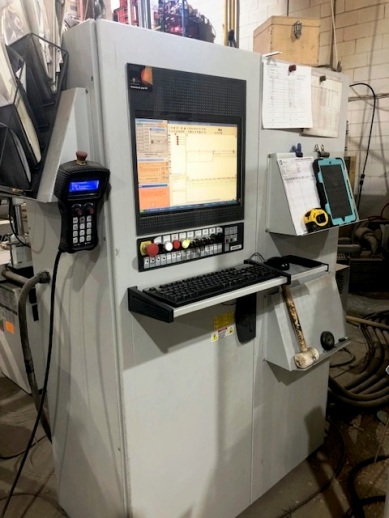

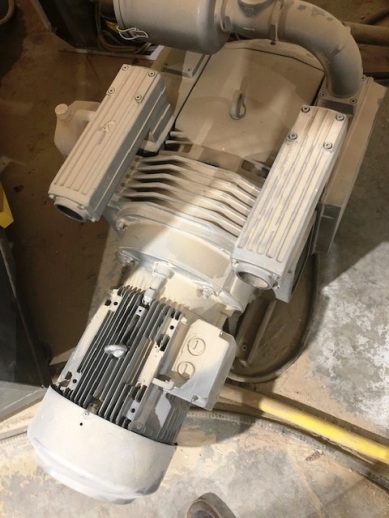

Vacuum Pump, Safety Mats, Control Panel
575/3/60 Operation
